Hardware Description

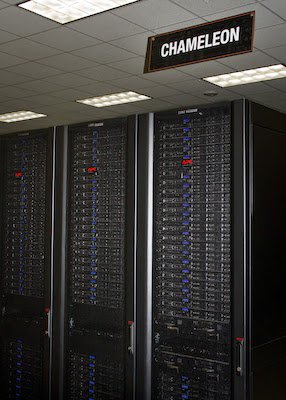

The Chameleon architecture consists of a set of standard cloud units (SCUs), each of which is a single rack with 42 compute nodes, 4 storage nodes attached to 128TB of local storage in configurable arrays, and an OpenFlow compliant network switch. In addition to the homogeneous SCUs, a variety of heterogeneous hardware types is available to experiment with alternative technologies. The testbed also includes a shared infrastructure with a persistent storage system accessible across the testbed, a top-level network gateway to allow access to public networks, and a set of management and provisioning servers to support user access, control, monitoring and configuration of the testbed. Chameleon is physically distributed between the Texas Advanced Computing Center (TACC) and the University of Chicago (UC) through 100Gbps Internet2 links, to allow users to examine the effects of a distributed cloud.

Hardware Summary

Standard Cloud Units (SCUs) Homogeneous Hardware Types
Number of Nodes per Rack: 42 Compute Nodes
4 Storage Nodes
Local Storage per homogeneous SCU: 128TB (configurable)
Network Switch: OpenFlow Compliant
TACC/UC Distributed Cloud 100Gbps Internet2 links

  Detailed information in our Resource Discovery Portal

Standard Cloud Units

The homogeneous standard cloud unit is a self-contained rack with all the components necessary to run a complete cloud infrastructure, and the capability to combine with other units to form a larger experiment. The rack consists of 42 Dell R630 servers; each with 24 cores delivered in dual socket Intel Xeon E5-2670 v3 “Haswell” processors (each with 12 cores @ 2.3GHz) and 128 GiB of RAM. In addition to the compute servers, each unit contains storage hosted in two FX2 chassis, each containing two Dell FC430 servers attached to two Dell PowerEdge FD332 storage blocks containing 16 2TB hard drives, for a total of 128TB of raw disk storage per unit. These FC430 storage nodes contain dual socket Intel Xeon E5-2650 v3 “Haswell” processors (each with 10 cores @ 2.3 GHz), 64 GiB of RAM, and can be combined across SCUs to create a Big Data infrastructure with more than a PB of storage. Each node in the SCU connects to a Dell switch at 10Gbps, with 40Gbps of bandwidth to the core network from each SCU. The total system contains 12 SCUs (10 at TACC and 2 at UC) for a total of 13,056 cores, 66 TiB of RAM, and 1.5PB of configurable storage in the SCU subsystem.


Networking is changing rapidly, and the network fabric is as much a part of the research focus of Chameleon as the compute or storage. For the Chameleon network, every switch in the research network is a fully OpenFlow compliant programmable Dell S6000-ON switch. Each node connects to this network at 10 Gbps, and each unit uplinks with 40Gbps per rack to the Chameleon core network. The core switches (Dell S6000-ON) are connected by 40 Gbps Ethernet links, which connect to the backbone 100Gbps services at both UC and TACC. A Fourteen Data Rate (FDR) Infiniband network (56Gbps) is also deployed on one SCU to allow exploration of alternate networks.

Shared Storage

While storage is dynamically provisioned to researchers to be used as an experiment needs within the SCUs, Chameleon also provides a shared storage system. The shared storage provides more than 3.6PB of raw disk in the initial configuration, which is partitioned between a file system and an object store that is persistent between experiments. The shared storage is comprised of four Dell R630 servers with 128 GiB of RAM, four MD3260 external drive arrays, and six MD3060e drive expansion chassis, populated by 600 6TB near line SAS drives. The system also includes a dozen PowerEdge R630 servers as management nodes to provide for login access to the resource, data staging, system monitoring, and hosting various OpenStack services.

Heterogeneous Compute Hardware

The heterogeneous hardware includes various technologies: GPU and FPGA accelerators, SSD and NVMe storage, low-power ARM, Atom, and Xeon systems-on-a-chip. With the exception of the low-power systems-on-a-chip, each of the additional nodes is a Dell PowerEdge R730 server with the same CPUs as the R630 servers in our SCUs.

The two storage hierarchy nodes have been designed to enable experiments using multiple layers of caching: they are configured with 512 GiB of memory, two Intel P3700 NVMe of 2 TB each, four Intel S3610 SSDs of 1.6 TB each, and four 15K SAS HDDs of 600 GB each.

The GPU offering consists of two K80 GPU nodes, two M40 GPU nodes, sixteen P100 GPU nodes. These nodes target experiments using accelerators to improve the performance of some algorithms, experiments with new visualization systems, and deep machine learning. Each K80 GPU node is upgraded with an NVIDIA Tesla K80 accelerator, consisting of two GK210 chips with 2496 cores each (4992 cores in total) and 24 GiB of GDDR5 memory. Each M40 node is upgraded with an NVIDIA Tesla M40 accelerator, consisting of a GM200 chip with 3072 cores and 12 GiB of GDDR5 memory. The P100 nodes have two GPU cards installed each, providing 32 P100 GPUs in total. The P100 GPUs utilize GP100 chips providing 3584 cores, with 16 GiB GDDR5 RAM in each card. In order to make it easy for users to get started with the GPU nodes, we have developed a CUDA appliance that includes NVIDIA drivers as well as the CUDA framework.

GPU Chip Cores per GPU RAM per GPU GPU per node # of nodes
Tesla K80 GK 210 2496 x 2 24 GiB GDDR5 1 2
Tesla M40 GM 200 3072 12 GiB GDDR5 1 2
Tesla P100 GP100 3584 16 GiB GDDR5 2 16

Four FPGA nodes have a Nallatech 385A board with an Altera Arria 10 1150 GX FPGA (up to 1.5 TFlops), 8 GiB DDR3 on-card memory, and dual QSFP 10/40 GbE support. One is fitted with a Terasic DE5a-Net board with an Altera Arria 10 GX 1150 FPGA (up to 1.5 TFlops), 4 GB DDR3 on-card memory, and four QSFP 10/40 GbE support. The Chameleon FPGA User Guide provides details for conducting experiments on this hardware.

The low-power systems are comprised of 8 low power Xeon servers (HP ProLiant m710p with one 4-core Intel Xeon E3-1284L v4 processor), 8 Atom servers (HP ProLiant m300 with one 8-core Intel Avoton-based System on a Chip), and 24 ARM servers (HP ProLiant m400 with one 8-core AppliedMicro X-gene System on a Chip). These are all delivered in a single HP Moonshot 1500 chassis.

For more information on how you can reserve these nodes, see the heterogeneous hardware section of the bare metal user’s guide.

You can browse detailed information about the resources offered for bare metal reconfiguration in our Resource Discovery Portal.
